804 S

804TAZ1000 / 804TAZ500 / 804TAZP200

Tornado 804 - 804 S

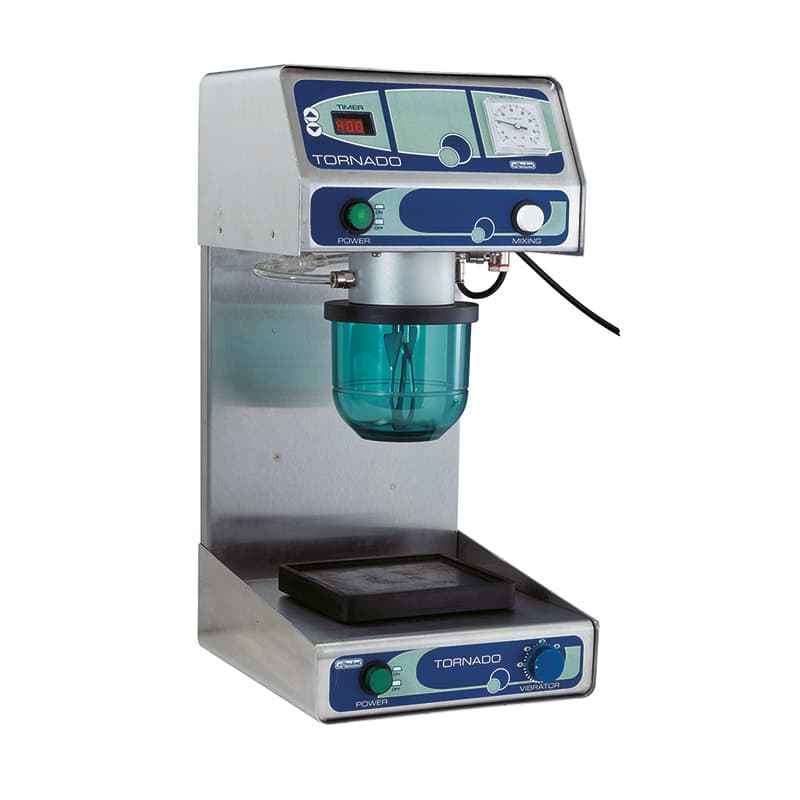

Mixer Machine

Innovative and easy to use Mixer Machine suitable for investment and plaster. A pneumatic locking mechanism holds up the mixing bowls firmly in place (Venturi System). Vacuum is obtained by connecting the machine to the compressed air; by means of a pressure regulator it is possible to vary the value, indicated in the appropriate vacuum gauge. This system avoids the use of a specific vacuum pump, reducing space and noise. By using a digital timer, the mixing time is set in minutes and seconds (maximum 9’59”).

Technical features

  • Feed Power: 230 V 50-60 Hz (110V on request);
  • Speed: 425 rpm;
  • Power: 220 W.


  • 804 S: Wall hanging model supplied with special fixing bracket;
  • 804: Freestanding model complete with adjustable vibrator.


  • Mixing bowl 500 cc (mixable) – Item N. 804TAZ1000;
  • Mixing bowl 250 cc (mixable) – Item N. 804TAZ500.

Dimensions and weight

  • Dimensions model 804: WxDxH 27×25.5×51 cm;
  • Weight model 804: 15 Kg;
  • Dimensions model 804 S: WxDxH 23.5×25.5×20 cm;
  • Weight model 804 S: 9 Kg.


  • Mixing bowl 90 cc (mixable) – Item N. 804TAZP200.
